LSM Launch Spinning Coaster ZXC-8A

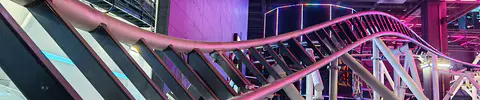

        At 482m long and 14m tall, it is a spinning coaster featuring spirals, banked turns and a half-U run that penetrates the 10m high upper floor. Jinma has used a Linear Synchronous Motor (LSM) launch system for the coaster in place of the conventional chain-lift or friction wheel launch. The coaster train will be shot through the upper floor and roll back, with two LSM launch zones, each tasked with launching the train at a specific speed.

    Block systems are adopted for the coaster, which enable two trains to run on the track separated by blocks. These monitors and control the train’s position and speed within each block, thus ensuring that train collisions don’t happen. Using block systems, operators are able to use the track efficiently and consequently and increase the ride’s hourly capacity.

Power Supply: 3N+PE 380V/220V, 50Hz
Installed Capacity: 700kVA
Drive Power: 3324kW
Track Height: 14.6m
Track Total Length: 482m

Max Speed: 48km/h
Launch Speed: 13.2m/s（Launch Section 1)
                       10.5m/s（Launch Section 2)
Load: 8riders x 2= 16 riders
Area: 65m×28m=1820m²
