Amusement Park Viking Ride HDC-24A

Viking HDC-24A

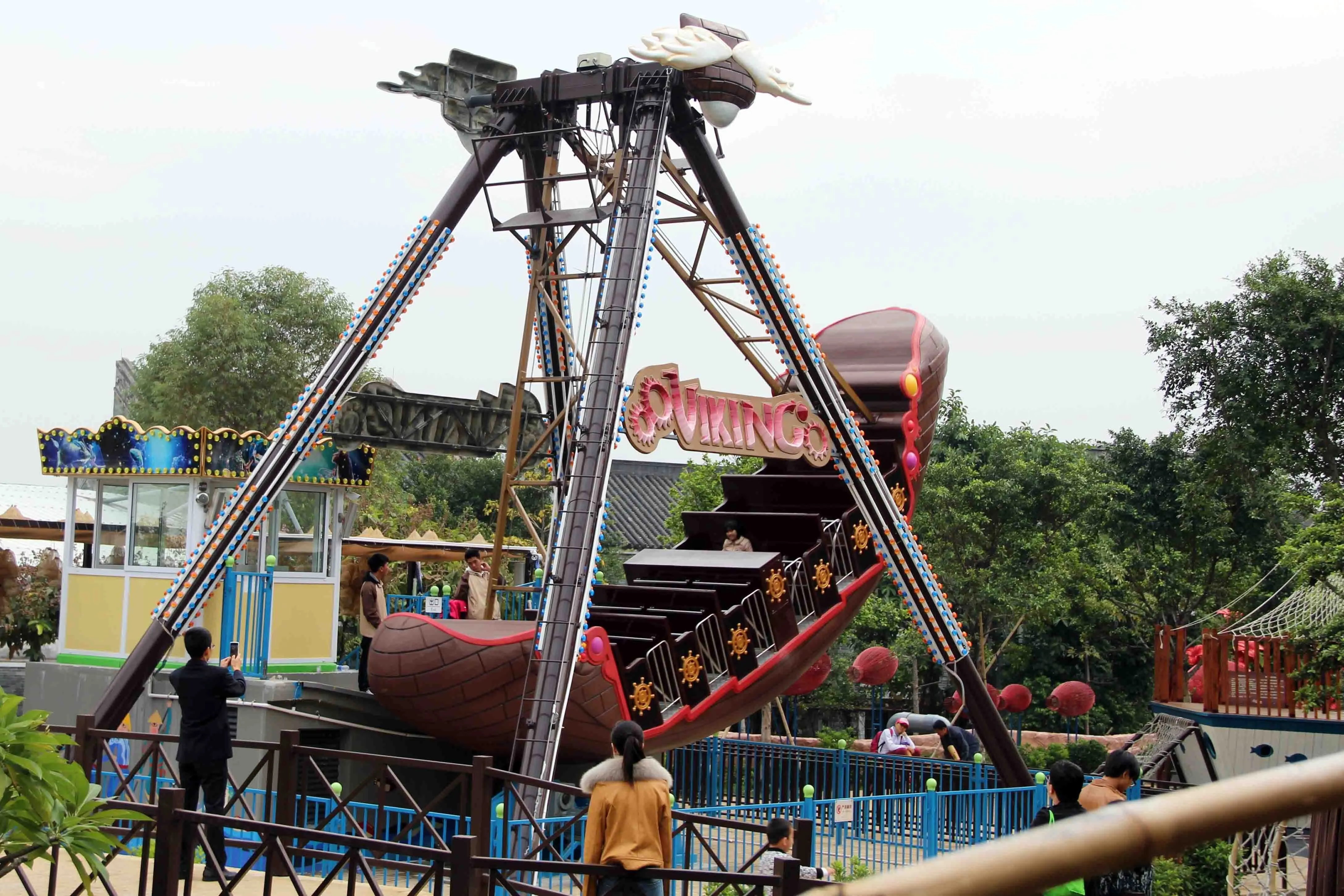

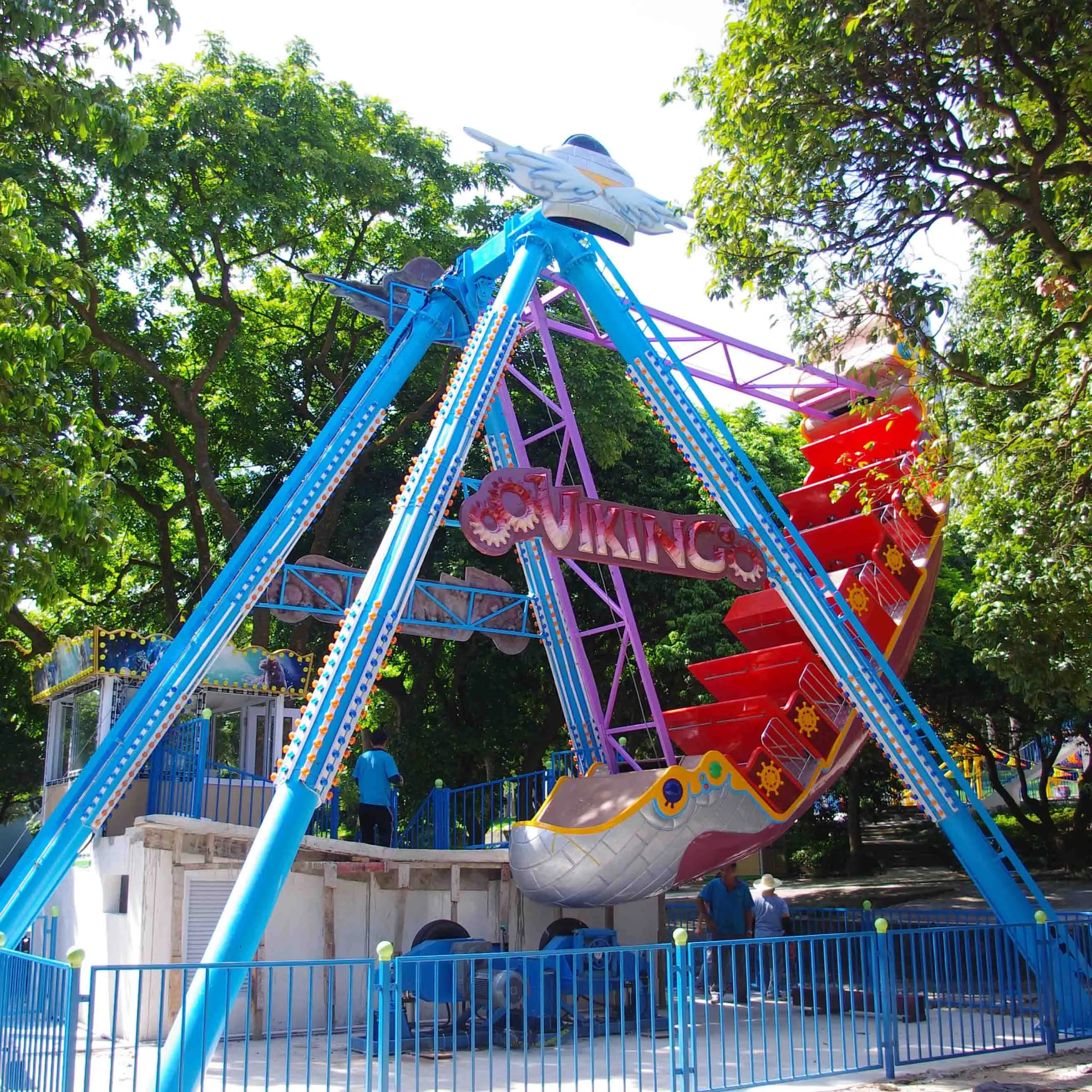

    Standing 9m tall, this classic pendulum ride consists of a tower structure made of four columns, a pair of swing arms, and a 24-seat gondola.

   Restrained by lap bars on each row, safe and sound,  passengers are able to experience the thrills that a swinging gondola brings.



Description



      Standing 9m tall, this classic pendulum ride consists of a tower structure made of four columns, a pair of swing arms, and a  24-seat gondola.

    The gondola is suspended onto the spindle located at top of the tower via swing arms. When the ride is in operation, the gondola swings back and forth up to  an angle of 60 degree max. The propulsion is powered by the motor-dirven frictional tyre mounted on the center of the ground just above the middle line along the boat bottom.

     Restrained by lap bars on each row, safe and sound, passengers are able to experience the thrills that a swing gongdola brings.

Technical Specification





Drive Power: 18.5 Kw

Ride Height: 9m

Running Height: 7.8m
Running Speed: 7.8m/s max.
Swing Angle: ±60°max.
Capacity: 24p
Area: 11m x 9m
Theoretical Hourly Capacity: 288 pph
