Space Shuttle ZK-64A

Space Shuttle ZK-64A

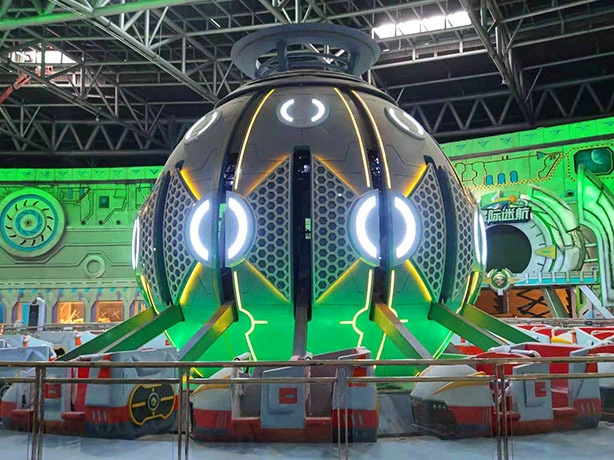

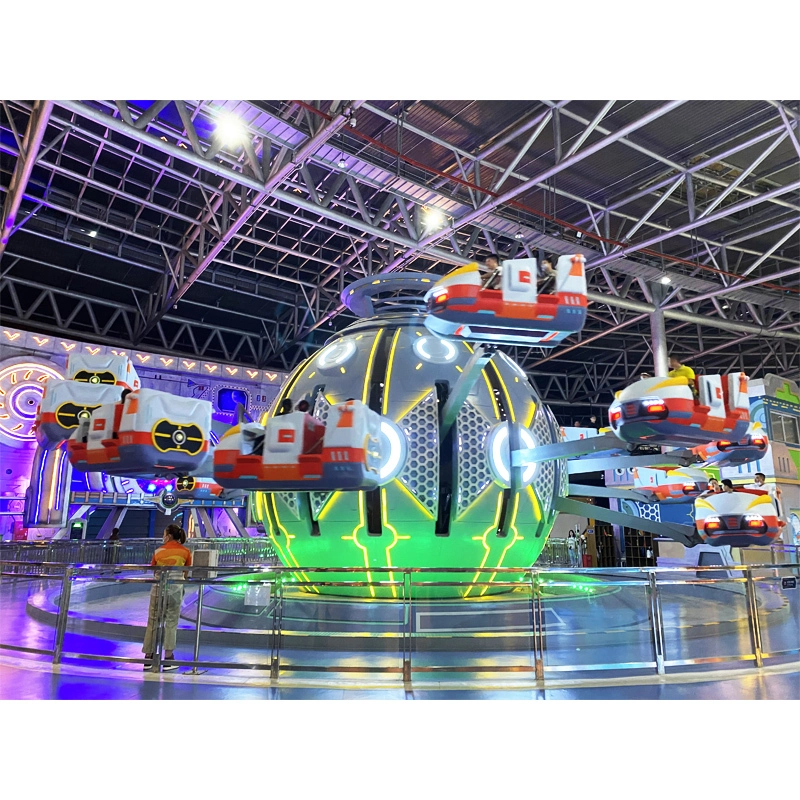

         Space Shuttle is an interactive round ride. As the ride rotates, passengers in the cabin may work on the console to control the cabin movement in the vertical direction. Sensation intensifies when a constant change in altitude is introduced.

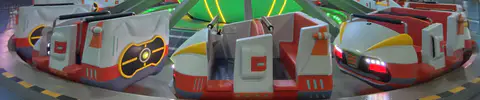

    A cabin is mounted on the far end of each swing arm. The up-and-down movements of swing arms is driven by pneumatic power. There are total 16 cabins, with each cabin holding up 4 passengers. All the arms are connected to a central carousel which is motor-driven to rotate on its own axis.

      It is a family ride that is meant to bond, suitable for parks of any size.

Description



       Space Shuttle is an interactive round ride. As the ride rotates, passengers in the cabin may work on the console to control the cabin movement in the vertical direction. Sensation intensifies when a constant change in altitude is introduced.

     A cabin is mounted on the far end of each swing arm. The up-and-down movements of swing arms is driven by pneumatic power. There are total 16 cabins, with each cabin holding up 4 passengers. All the arms are connected to a central carousel which is motor-driven to rotate on its own axis.

     It is a family ride that is meant to bond, suitable for parks of any size.

Technical Specification



Installed Capacity: 235kVA
Ride Height: 8.8m
Running height: 7.8m
Maximum rotary speed: 4.9rpm(0.512rad/s)
Maximum linear velocity: 15.85km/h(4.4m/s)
Diameter: 22m
Cabin No.: 16 pcs
Load: 64 riders
