Viking Ride Viking Amusement Ride HDC-96C

Viking Ride HDC-96C

    Viking Amusement Ride HDC-96A is the largest model we offer under pendulum ride category. Its overall height measures 18 meters, with a load capacity up to 96 persons. Theoretically Viking Carnival Ride is able to handle around 1,000 persons in an hour. It is the best fit for a park that sees a large inflow of visitors.

Vikings Ride Description



    Viking Rides HDC-96A is the largest model we offer under pendulum ride category. Its overall height measures 18 meters, with a load capacity up to 96 persons.  Theoretically it is able to handle around 1,000 persons in an hour.

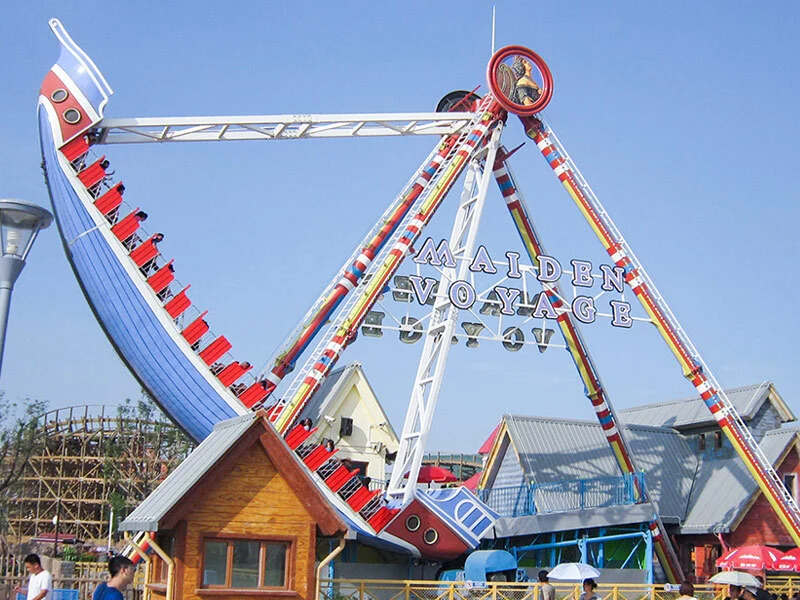

     The giant boat is suspended via two swing arms onto a sturdy support structure which consists of four giant pillars. The propulsion underneath the bottom of the boat pushes to swing the boat back and forth up to an angle of 60 degrees. Seats in open seated boat are arranged in 16 rows, each accommodating 6 persons.

   Viking Ride is the best fit for a park that sees a large inflow of visitors.





Technical Specification



Drive Power: 167kW

Ride Height: 18m

Run Height: 16.5m
Max. Speed: 46.3km/h
Swing Angle: ±60°
Swing Radius: 15.5m
Load: 6p x16rows=96p
Cycle Time: 3min

Area: 24 ×11.5= 276m2

Theoretical Hourly Capacity: 1,000 pph
