Viking Ship Amusement Ride Carnival Ride HDC-56A

Viking Ride HDC-56A

    This Viking Amusement Ride classic pendulum consists of a tower structure made of four columns, a pair of swing arms, and a gondola. Restrained by lap bars on each row, safe and sound, passengers are able to experience a significant amount of airtime.



Viking Amusement Ride Description

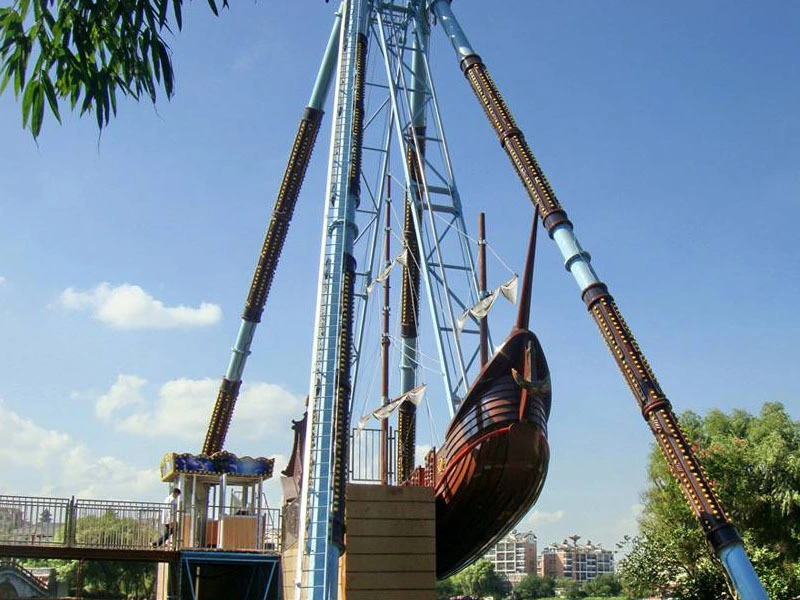

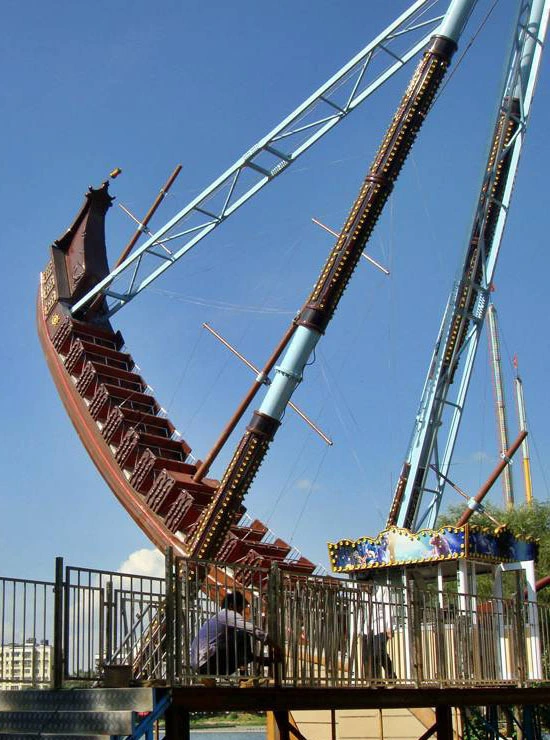

      This Viking Ride classic pendulum consists of a tower structure made of four columns, a pair of swing arms, and a gondola.

    The gondola is suspended onto the top of the tower via swing arms. When the ride is in operation, it swings back and forth to a max 60 degree limit, enabled by the propulsion tyre mounted on the center of the ground just above the middle line along the bottom of the gondola.

     Restrained by lap bars on each row, safe and sound, passengers are able to experience a significant amount of airtime.

Technical Specification



Drive Motor: 99kW

Run Height: 17.5m
Ride Height: 20.5m

Speed: 48.9km/h max.
Swing Angle: ±60°
Load: 4p x14=56p
Running Time: 3min.
Theoretical Hourly Capacity: 610 pph
